Explanation:

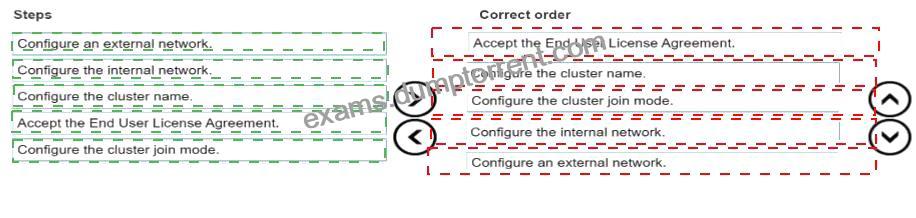

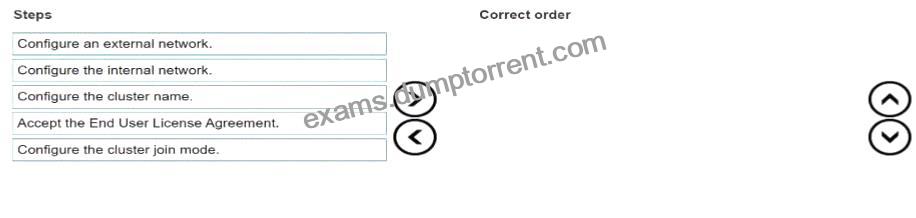

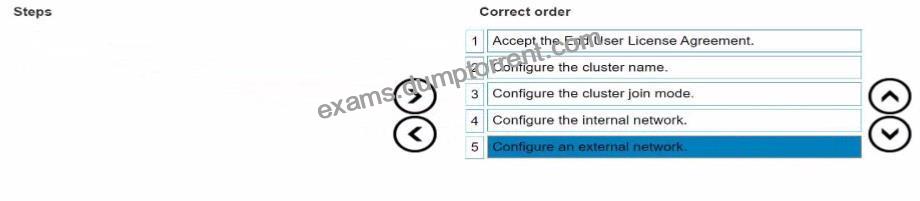

The correct sequence is:
* Accept End User License Agreement
* Configure cluster name
* Configure cluster join mode
* Configure internal network
* Configure external network

When creating a new Dell PowerScale cluster using the Configuration Wizard, the steps must be performed in a specific sequence to ensure proper setup and functionality. Below is the detailed order of the steps with explanations and references to Dell PowerScale documentation.
1. Accept End User License Agreement
* Purpose:
* Before any configuration can begin, you must accept the End User License Agreement (EULA) to comply with legal requirements and proceed with the cluster setup.
* Action:
* Review the EULA presented in the Configuration Wizard.
* Select the option to accept the terms and conditions.
* Dell PowerScale References:
* Dell EMC PowerScale OneFS Installation Guide
* Chapter: Initial Configuration
* The Configuration Wizard begins by displaying the EULA, which must be accepted to continue.
* Best Practices:
* Carefully read the EULA to understand your rights and obligations.
2. Configure Cluster Name
* Purpose:
* Assigning a cluster name is essential for identification and management purposes within your network environment.
* Action:
* Enter a unique and descriptive name for the cluster when prompted.
* Dell PowerScale References:
* Dell EMC PowerScale OneFS Installation Guide
* Section: Configuring Cluster Settings
* After accepting the EULA, the wizard prompts for cluster-specific settings, starting with the cluster name.
* Best Practices:
* Use a naming convention that aligns with your organization’s standards.
* Ensure the cluster name is DNS-resolvable if necessary.
3. Configure Cluster Join Mode
* Purpose:
* Determine whether to create a new cluster or join an existing one.
* Since you are creating a new cluster, you need to select the appropriate join mode.
* Action:
* Choose “Create a new cluster” from the available options.
* Dell PowerScale References:
* Dell EMC PowerScale OneFS Installation Guide
* Section: Cluster Creation Options
* The wizard asks whether to create a new cluster or join an existing one.
* Best Practices:
* Verify that all nodes intended for the cluster are correctly cabled and powered on.
4. Configure Internal Network
* Purpose:
* Set up the internal networking (back-end network) that enables communication between nodes within the cluster.
* Critical for cluster operations, data replication, and management traffic.
* Action:
* Configure settings for internal interfaces int-a and int-b.
* Assign IP address ranges and netmasks as required.
* Dell PowerScale References:
* Dell EMC PowerScale Networking Configuration Guide
* Chapter: Configuring Internal Networks
* Details on setting up the internal network interfaces during cluster creation.
* Best Practices:
* Use separate subnets for int-a and int-b to enhance redundancy.
* Ensure that the internal network is isolated from external networks for security.
5. Configure External Network
* Purpose:
* Establish the external networking (front-end network) that allows clients and services to access the cluster.
* Action:
* Configure settings for external network interfaces.
* Assign IP addresses, netmasks, gateways, and DNS information.
* Dell PowerScale References:
* Dell EMC PowerScale Networking Configuration Guide
* Chapter: Configuring External Networks
* Provides guidance on setting up external interfaces after internal networking is configured.
* Best Practices:
* Plan IP addressing to avoid conflicts within your network.
* Configure SmartConnect zones if required for load balancing and failover.
Additional Notes:
* Sequence Importance:
* Following this sequence ensures that foundational settings are established before dependent configurations.
* For example, internal networking must be configured before external networking to ensure proper node communication.
* Validation and Testing:
* After completing the Configuration Wizard, validate the cluster setup by checking node status and network connectivity.
* Use the OneFS web administration interface or CLI commands to verify configurations.
* References to Dell PowerScale Documentation:
* Dell EMC PowerScale OneFS Installation Guide
* Provides step-by-step instructions for initial cluster setup.
* Dell EMC PowerScale Networking Configuration Guide
* Offers detailed information on networking configurations and best practices.
* Dell EMC PowerScale OneFS Administration Guide
* Useful for advanced configurations and cluster management post-installation.
Conclusion:
By following the sequence outlined above, the platform engineer can successfully create a new Dell PowerScale cluster using the Configuration Wizard. Each step builds upon the previous one, ensuring a robust and properly configured cluster ready for operation.

When Dell EMC Technical Support requests that a part be sent back directly to Dell Logistics for further analysis, a specific process must be followed to ensure proper handling and documentation.
Required Process:
* Complete the WWFA (Worldwide Field Analysis) Form:
* The WWFA is a document that needs to be filled out before returning parts that require detailed analysis.
* It provides information about the failure, circumstances, and any relevant data that can assist in the investigation.
Why Option D is Correct:
* WWFA (Worldwide Field Analysis):
* The correct form required in this scenario.
* Ensures that the returned part is properly tracked and analyzed by Dell EMC.
Why Other Options Are Incorrect:
* Option A (WWF):
* Likely a typographical error or incorrect abbreviation.
* Option B (CDMR):
* Refers to a Customer Declared Material Return, not applicable here.
* Option C (DMR):
* Stands for Defective Material Return, a general process but may not include the necessary details for analysis.
Dell PowerScale References:
* Dell EMC Support Policies:
* Return Material Authorization (RMA) Procedures:
* Outline the process for returning parts.
* Specify when a WWFA is required.
* Communication with Support:
* Support Request:
* Dell EMC Technical Support will inform you if a WWFA is needed.
* They will provide instructions on how to complete and submit the form.
* Documentation:
* The WWFA form typically includes:
* Part number and serial number.
* Description of the issue.
* Environmental conditions.
* Any troubleshooting steps taken.
Best Practices:
* Accurate Information:
* Provide detailed and accurate information to aid in the analysis.
* Timely Submission:
* Complete the WWFA promptly to avoid delays.
* Packaging and Shipping:
* Follow any packaging instructions to prevent further damage.
* Use the shipping labels provided by Dell EMC if applicable.
Benefits of Completing the WWFA:
* Improved Support:
* Helps Dell EMC identify root causes and prevent future issues.
* Warranty Compliance:
* Ensures that the return is processed under the terms of the warranty or support agreement.
* Feedback Loop:
* Provides valuable feedback to Dell EMC for product improvements.

For serial console connections to a Gen 5 node, specific terminal settings are required.
Required Settings:
* Transfer Rate (Baud Rate):115,200 bps
* Data Bits:8
* Parity:None
* Stop Bits:1
* Flow Control:Hardware
Dell PowerScale References:
* Dell EMC PowerScale Hardware Installation Guide:
* Serial Connection Settings:
* Provides the exact settings for terminal emulation software.
* Recommends these settings for successful communication.
* Best Practices:
* Use reliable terminal software (e.g., PuTTY).
* Verify cable connections and adapter compatibility.

Dell SolVe Online (and SolVe Desktop) is the primary resource for obtaining up-to-date, detailed service procedures for Dell EMC PowerScale systems.
Key Points:
* Purpose of Dell SolVe Online:
* Provides the latest service procedures, including installation, replacement, and troubleshooting guides.
* Ensures that technicians have access to current and accurate information.
* Features:
* Interactive procedures with step-by-step instructions.
* Customizable checklists and workflows.
* Regularly updated content reflecting the latest product updates and best practices.
* Accessibility:
* Available online and as a downloadable application (SolVe Desktop).
* Requires authentication to ensure that only authorized personnel access sensitive service information.
Dell PowerScale References:
* Dell EMC Support Resources:
* Directs service personnel to use SolVe Online for official procedures.
* Emphasizes the importance of using approved resources to maintain product integrity and support agreements.
* Incorrect Options:
* Option A (Dell Quick Reference Guide)provides summary information but not detailed service procedures.
* Option B (Dell Enterprise Configuration Services)is a professional service offering, not a resource for procedures.
* Option D (Dell iDRAC Service Module)is a management tool for servers, not for accessing service instructions for PowerScale systems.

Dell EMC PowerScale Gen 6 nodes are designed to operate efficiently within specified environmental conditions.
Maximum Recommended Ambient Temperature:
* 35°C (95°F):
* Operating the nodes at or below this temperature ensures optimal performance and longevity.
* Exceeding this temperature may lead to hardware degradation or failures.
Environmental Specifications:
* Operating Temperature Range:
* Minimum:10°C (50°F)
* Maximum:35°C (95°F)
* Humidity and Altitude:
* Should also be within specified limits for safe operation.
Dell PowerScale References:
* Dell EMC PowerScale Site Preparation and Planning Guide:
* Environmental Requirements Section:
* Details the acceptable temperature and humidity ranges.
* Provides guidelines for data center cooling and airflow.
* Best Practices:
* Use environmental monitoring tools to track data center conditions.
* Implement redundant cooling systems to prevent overheating.
* Regularly maintain HVAC equipment to ensure consistent performance.

In Dell EMC PowerScale Gen 6 hardware, color-coded handles and components provide visual cues about how to service the equipment safely.
Blue Handle Indication:
* Hot-Swappable Components:
* A blue handle signifies that the component is hot-swappable or hot-pluggable.
* This means you can remove or replace the componentwithout shutting down the node.
* Examples of Blue-Handled Components:
* Power supplies
* Cooling fans
* Certain I/O modules
Why Option C is Correct:
* Online Maintenance:
* Components with blue handles can be serviced while the node is operational.
* Allows for maintenance without impacting system availability.
Why Other Options Are Incorrect:
* Option A (Node should be shut down):
* Contradicts the purpose of a blue handle indicating hot-swap capability.
* Option B (Hardware does not require ESD procedure):
* ESD precautions are always necessary when handling electronic components.
* Option D (Hardware does not require SolVe Desktop activity):
* SolVe Desktop provides guidance for maintenance tasks; the need for SolVe is not determined by handle color.
Dell PowerScale References:
* Dell EMC PowerScale Hardware Replacement Guide:
* Color Coding Conventions:
* Explains that blue handles indicate hot-swappable components.
* Maintenance Procedures:
* Provides instructions for servicing components with blue handles without shutting down the node.
* Safety Guidelines:
* Emphasizes the importance of following ESD procedures during any hardware maintenance.
Best Practices:
* Follow Proper Procedures:
* Even though the node remains online, adhere to the recommended steps for replacing the component.
* Use ESD Protection:
* Wear an antistatic wrist strap and work in an ESD-safe environment.
* Verify Component Status:
* Check system logs and indicators to ensure it’s safe to remove the component.
Additional Notes:
* Minimizing Downtime:
* Hot-swappable components help maintain high availability and reduce service interruptions.
* Consult Documentation:
* Always refer to the latest Dell EMC documentation or SolVe Desktop for specific instructions.

For Dell EMC PowerScale systems, when installing nodes such as theF200, a common1:4 breakout cable ratio is used. This means that a single 40GbE port on a switch is broken out into four 10GbE connections, which are used for connecting nodes like the F200.
For example, in environments where multiple F200 nodes need to be connected to a switch using high-speed Ethernet, a 40GbE port on the switch can be split into four 10GbE connections, which is commonly used in PowerScale installations to maximize the available network connections while minimizing the number of switch ports required.

Dell EMC PowerScale F600 nodes utilize high-speed Ethernet connections for back-end networking to facilitate fast and efficient cluster communication.
Supported Back-End Network Speeds:
* 25 Gigabit Ethernet (GbE):
* Provides a balance between speed and cost.
* Suitable for clusters that require high performance but have budget considerations.
* 100 Gigabit Ethernet (GbE):
* Offers the highest available throughput.
* Ideal for clusters with demanding performance requirements.
Why Other Options Are Incorrect:
* Option A (10 GbE or 40 GbE):
* F600 nodes do not support these speeds for back-end networking.
* Option B (10 GbE or 25 GbE):
* 10 GbE is not supported on F600 back-end.
* Option D (25 GbE or 40 GbE):
* 40 GbE is not a supported back-end speed for F600 nodes.
Dell PowerScale References:
* Dell EMC PowerScale Networking Guide:
* Chapter on Back-End Networking:
* Lists supported network speeds for different node models.
* Confirms that F600 nodes support 25 GbE and 100 GbE for back-end connections.
* Best Practices:
* Match back-end network speeds across all nodes for optimal performance.
* Use high-quality cables and switches that support the required speeds.

By default, the Power Supply Hot Spare feature may cause one power supply to run while the other is idle.
Steps to Ensure Equal Power Supply Loading:
* Access iDRAC Interface:
* Log into the iDRAC for each F200 node.
* Disable Hot Spare Feature:
* Navigate to Power Management settings.
* Disable the Power Supply Hot Spare option.
* Result:
* Both power supplies will share the load equally.
Dell PowerScale References:
* Dell EMC PowerScale F200 Hardware Guide:
* Power Supply Configuration:
* Instructions on adjusting power supply settings via iDRAC.
* Best Practices:
* Ensure redundancy by connecting power supplies to separate PDUs.
* Monitor power usage to confirm balanced loading.

When replacing the backup battery in a Dell PowerScale node, it is mandatory to replace theM.2 cardat the same time. The M.2 card, which acts as a boot device and stores critical system information, works in conjunction with the backup battery to ensure data integrity.
* Role of the Backup Battery:
* Data Protection:
* Provides power to preserve data in cache during a power loss.
* Supports NVRAM Operations:
* Ensures that any unwritten data is safely stored until power is restored.
* Importance of the M.2 Card:
* Boot Device:
* Contains the OneFS operating system boot partition.
* Data Logging:
* Stores logs and system configuration data.
* Simultaneous Replacement Requirement:
* Interdependent Components:
* The backup battery and M.2 card are designed to work together.
* Preventive Maintenance:
* Replacing both reduces the risk of future failures.
* Firmware Compatibility:
* Ensures both components are updated and compatible.
* Procedure:
* Shut Down the Node:
* Safely power down the node before replacement.
* Replace Both Components:
* Remove the old backup battery and M.2 card.
* Install the new components.
* Reboot and Verify:
* Power on the node and confirm normal operation.
Why Other Options Are Incorrect:
* B. Both NIC cards:
* NICs do not need to be replaced when replacing the backup battery.
* C. Riser card:
* The riser card is unrelated to the backup battery and does not require replacement in this context.
Dell PowerScale References:
* Dell EMC PowerScale Field Replacement Unit (FRU) Procedure Guide:
* Specifies that the backup battery and M.2 card must be replaced together.
* Maintenance Best Practices:
* Emphasize the importance of replacing interdependent components.
* Hardware Owner’s Manual:
* Provides step-by-step instructions for replacing the backup battery and M.2 card.

To safely power off a node in a Dell EMC PowerScale cluster, use the shutdown command with the appropriate options.
Command Details:
* shutdown -p now:
* shutdown: Initiates a system shutdown.
* -p: Powers off the system after shutdown.
* now: Executes the command immediately.
Why Other Options Are Incorrect:
* Option A (isi status -q):Displays cluster status; doesn’t control power.
* Option B (isi status -h):Invalid option; isi status doesn’t power off nodes.
* Option D (shutdown -h now):Halts the system but may not power it off.
Dell PowerScale References:
* Dell EMC PowerScale OneFS Administration Guide:
* Shutting Down Nodes Section:
* Recommends using shutdown -p now for powering off nodes.
* Safety Precautions:
* Advises to notify users and ensure no critical processes are running.
* Best Practices:
* Verify that the node is not hosting critical services before shutdown.
* Inform cluster administrators of maintenance activities.
