Explanation:

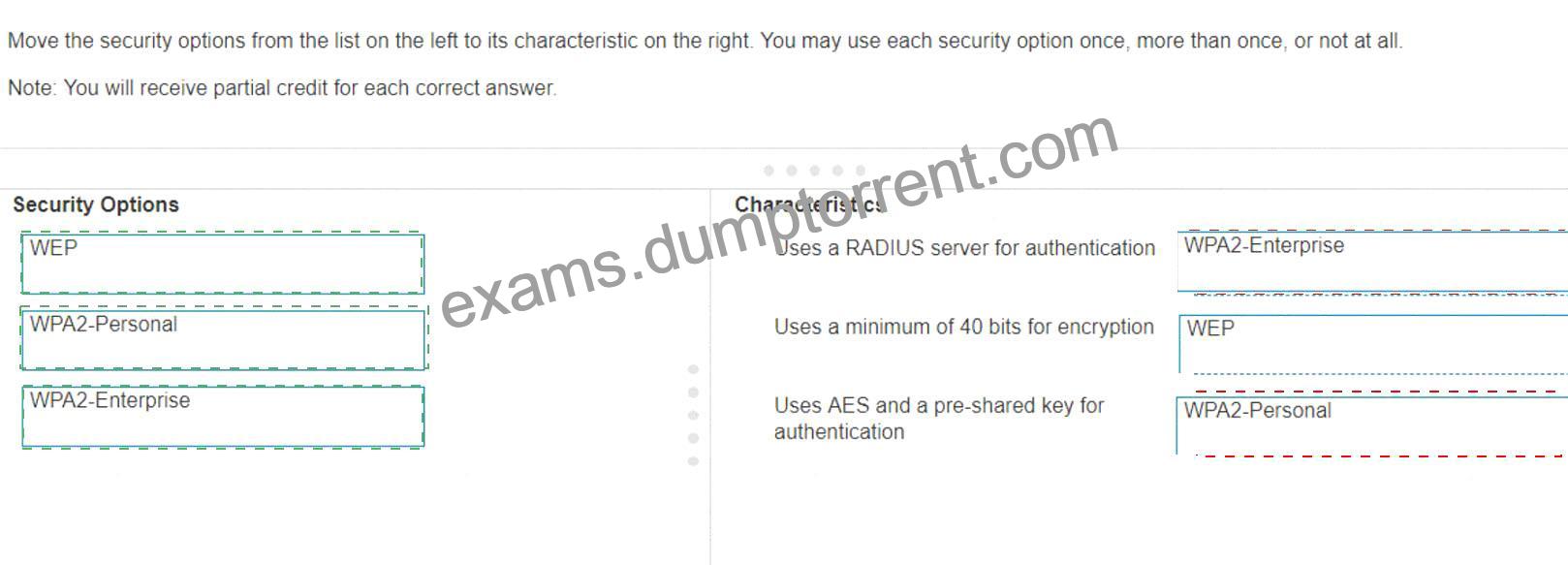

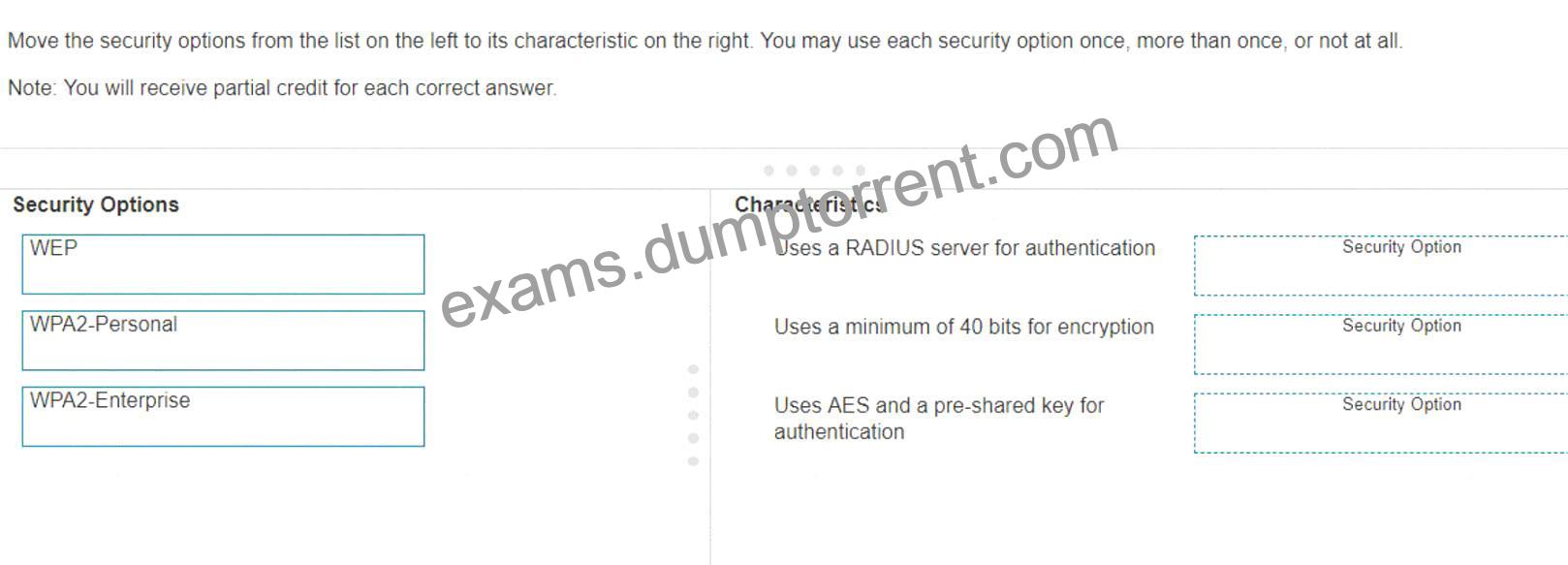

The correct matching of the security options to their characteristics is as follows:
* WPA2-Enterprise: Uses a RADIUS server for authentication
* WEP: Uses a minimum of 40 bits for encryption
* WPA2-Personal: Uses AES and a pre-shared key for authentication
Here’s why each security option matches the characteristic:
* WPA2-Enterprise uses a RADIUS server for authentication, which provides centralized Authentication, Authorization, and Accounting (AAA) management for users who connect and use a network service.
* WEP (Wired Equivalent Privacy) is an outdated security protocol that uses a minimum of 40 bits for encryption (and up to 104 bits), which is relatively weak by today’s standards.
* WPA2-Personal (Wi-Fi Protected Access 2 – Personal) uses the Advanced Encryption Standard (AES) for encryption and a pre-shared key (PSK) for authentication, which is shared among users to access the network.
These security options are essential for protecting wireless networks from unauthorized access and ensuring data privacy.

When prioritizing trouble tickets, the most critical issues affecting business operations or high-impact activities should be addressed first. Here’s a breakdown of the tickets:
* Ticket 1: Relocation of a printer, while necessary, is not urgent and does not impact critical operations.
* Ticket 2: An ongoing webinar losing internet access is critical, especially if the webinar is time- sensitive and involves multiple participants.
* Ticket 3: Slower response time for a cloud-based application is important but typically not as urgent as a complete loss of internet access for a live event.
* Ticket 4: Wireless access down in the cafeteria affects users but does not have the same immediate impact as a live webinar losing connectivity.
Thus, the correct answer is B. Ticket 2: An online webinar is taking place in the conference room. The video conferencing equipment lost internet access.
References :=
* IT Help Desk Best Practices
* Prioritizing IT Support Tickets

WPA2-Personal, also known as WPA2-PSK (Pre-Shared Key), is the wireless security option that uses a pre-shared key to authenticate clients. This method is designed for home and small office networks and doesn’t require an authentication server. Instead, every user on the network uses the same key or passphrase to connect1.
Reference: =
* What is a Wi-Fi Protected Access Pre-Shared Key (WPA-PSK)?
* Exploring WPA-PSK and WiFi Security
* WPA2-Personal: This wireless security option uses a pre-shared key (PSK) for authentication. Each client that connects to the network must use this key to gain access. It is designed for home and small office networks where simplicity and ease of use are important.
* WPA2-Enterprise: Unlike WPA2-Personal, WPA2-Enterprise uses 802.1x authentication with an authentication server (such as RADIUS) and does not rely on a pre-shared key.
* 802.1x: This is a network access control protocol for LANs, particularly wireless LANs. It provides an authentication mechanism to devices wishing to attach to a LAN or WLAN.
* 802.1q: This is a networking standard that supports VLAN tagging on Ethernet networks and is not related to wireless security.
Reference:
* Cisco Documentation on WPA2 Security: Cisco WPA2
* Understanding Wireless Security: Wireless Security Guide

The CIDR (Classless Inter-Domain Routing) notation for the subnet mask 255.255.252.0 is /22. This notation indicates that the first 22 bits of the IP address are used for network identification, and the remaining bits are used for host addresses within the network1.
References :=
*Subnet Cheat Sheet – 24 Subnet Mask, 30, 26, 27, 29, and other IP Address CIDR Network References
*Subnet Mask to CIDR Notation: The given subnet mask is 255.255.252.0. To convert this to CIDR notation:
*Convert the subnet mask to binary: 11111111.11111111.11111100.00000000
*Count the number of consecutive 1s in the binary form: There are 22 ones.
*Therefore, the CIDR notation is /22.
References:
*Understanding Subnetting and CIDR: Cisco CIDR Guide

Explanation:

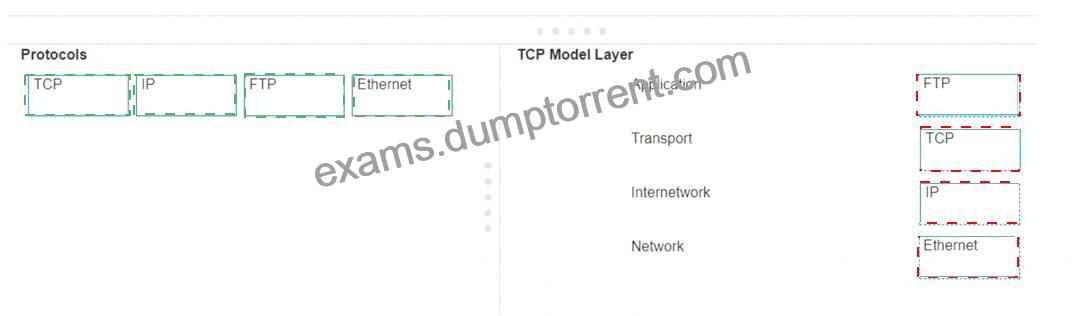

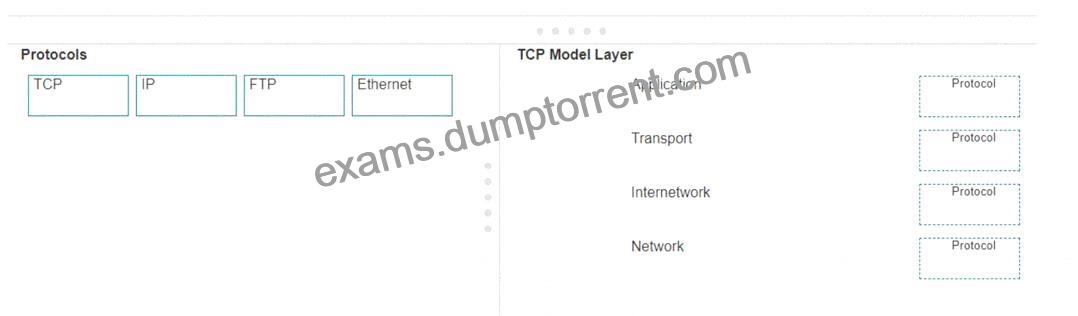

Here’s how each protocol aligns with the correct TCP/IP model layer:
* TCP (Transmission Control Protocol): This protocol belongs to the Transport layer, which is responsible for providing communication between applications on different hosts1.
* IP (Internet Protocol): IP is part of the Internetwork layer, which is tasked with routing packets across network boundaries to their destination1.
* FTP (File Transfer Protocol): FTP operates at the Application layer, which supports application and end- user processes. It is used for transferring files over the network1.
* Ethernet: While not a protocol within the TCP/IP stack, Ethernet is associated with the Network Interface layer, which corresponds to the link layer of the TCP/IP model and is responsible for the physical transmission of data1.
The TCP/IP model layers are designed to work collaboratively to transmit data from one layer to another, with each layer having specific protocols that perform functions necessary for the data transmission process1.
* TCP:
* TCP Model Layer: Transport
* Explanation: The Transport layer is responsible for end-to-end communication and error handling. TCP (Transmission Control Protocol) operates at this layer to provide reliable, ordered, and error-checked delivery of data.
* IP:
* TCP Model Layer: Internetwork
* Explanation: The Internetwork layer, also known as the Internet layer, is responsible for logical addressing and routing. IP (Internet Protocol) operates at this layer to route packets across networks.
* FTP:
* TCP Model Layer: Application
* Explanation: The Application layer provides network services to applications. FTP (File Transfer Protocol) operates at this layer to transfer files between computers over a network.
* Ethernet:
* TCP Model Layer: Network
* Explanation: The Network layer, also known as the Link layer in the TCP/IP model, is responsible for physical addressing and access to the physical medium. Ethernet operates at this layer to provide the physical and data link functions.
* Transport Layer: This layer is responsible for providing communication services directly to the application processes running on different hosts. TCP is a core protocol in this layer.
* Internetwork Layer: This layer is responsible for logical addressing, routing, and packet forwarding.
IP is the primary protocol for this layer.
* Application Layer: This layer interfaces directly with application processes and provides common network services. FTP is an example of a protocol operating in this layer.
* Network Layer: In the TCP/IP model, this layer includes both the data link and physical layers of the OSI model. Ethernet is a protocol used in this layer to define network standards and communication protocols at the data link and physical levels.
References:
* TCP/IP Model Overview: Cisco TCP/IP Model
* Understanding the TCP/IP Model: TCP/IP Layers

When devices within a VLAN are unable to reach addresses outside their VLAN, it typically indicates that they do not have a configured path to external networks. The engineer should configure a default gateway for VLAN2. The default gateway is the IP address of the router’s interface that is connected to the VLAN, which will route traffic from the VLAN to other networks12.
References :=
*Understanding and Configuring VLAN Routing and Bridging on a Router Using the IRB Feature
*VLAN 2 not able to ping gateway – Cisco Community
*VLANs: Virtual Local Area Networks (VLANs) logically segment network traffic to improve security and performance. Devices within the same VLAN can communicate directly.
*Default Gateway: For devices in VLAN2 to communicate with devices outside their VLAN, they need a default gateway configured. The default gateway is typically a router or Layer 3 switch that routes traffic between different VLANs and subnets.
*Additional VLAN: Not needed in this scenario as the issue is related to routing traffic outside VLAN2, not creating another VLAN.
*Default Route: While a default route on the router may be necessary, the primary issue for devices within VLAN2 is to have a configured default gateway.
*Static Route: This is used on routers to manually specify routes to specific networks but does not address the need for a default gateway on the client devices.
References:
*Cisco VLAN Configuration Guide: Cisco VLAN Configuration
*Understanding and Configuring VLANs: VLANs Guide

SFTP, or Secure File Transfer Protocol, is a protocol that allows for secure file transfer capabilities between networked hosts. It is a secure extension of the File Transfer Protocol (FTP). SFTP encrypts both commands and data, preventing passwords and sensitive information from being transmitted openly over the network. It is typically used for secure file transfers over the internet and is built on the Secure Shell (SSH) protocol1.
References :=
*What Is SFTP? (Secure File Transfer Protocol)
*How to Use SFTP to Safely Transfer Files: A Step-by-Step Guide
*Secure File Transfers: Best Practices, Protocols And Tools
The Secure File Transfer Protocol (SFTP) is a secure version of the File Transfer Protocol (FTP) that uses SSH (Secure Shell) to encrypt all commands and data. This ensures that sensitive information, such as usernames, passwords, and files being transferred, are securely transmitted over the network.
*ICMP (Internet Control Message Protocol) is used for network diagnostics and is not designed for file transfer.
*NTP (Network Time Protocol) is used to synchronize clocks between computer systems and is not related to file transfer.
*HTTP (HyperText Transfer Protocol) is used for transmitting web pages over the internet and does not inherently provide secure file transfer capabilities.
Thus, the correct protocol that allows secure uploading of files to another computer on the internet is SFTP.
References :=
*Cisco Learning Network
*SFTP Overview (Cisco)

Explanation:

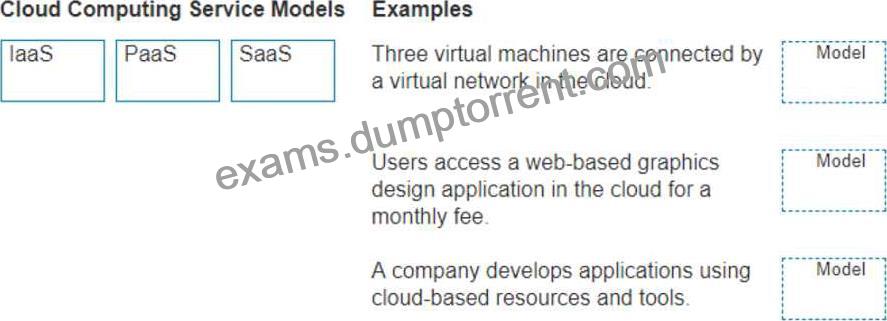

Three virtual machines are connected by a virtual network in the cloud.
Model: IaaS (Infrastructure as a Service)
IaaS provides virtualized computing resources over the internet, including virtual machines, storage, and networks.
Users access a web-based graphics design application in the cloud for a monthly fee.
Model: SaaS (Software as a Service)
SaaS delivers software applications over the internet, typically on a subscription basis, accessible via a web browser.
A company develops applications using cloud-based resources and tools. Model: PaaS (Platform as a Service)
PaaS provides a platform allowing customers to develop, run, and manage applications without dealing with the infrastructure.
IaaS (Infrastructure as a Service): Provides virtualized hardware resources that customers can use to build their own computing environments.
PaaS (Platform as a Service): Offers a platform with tools and services to develop, test, and deploy applications.
SaaS (Software as a Service): Delivers fully functional applications over the internet that users can access and use without managing the underlying infrastructure.
Reference: Cloud Service Models: Understanding IaaS, PaaS, SaaS
NIST Definition of Cloud Computing: NIST Cloud Computing

The header of a UDP (User Datagram Protocol) segment includes port numbers. Specifically, it contains the source port number and the destination port number, which are used to identify the sending and receiving applications. UDP headers do not include IP addresses or MAC addresses, as those are part of the IP and Ethernet frame headers, respectively. Additionally, UDP does not use sequence numbers, which are a feature of TCP (Transmission Control Protocol) for ensuring reliable delivery of data segments1.
Reference: =
Segmentation Explained with TCP and UDP Header
User Datagram Protocol (UDP) – GeeksforGeeks
Which three fields are used in a UDP segment header
UDP Header: The header of a UDP segment includes the following key fields:
Source Port: The port number of the sending application.
Destination Port: The port number of the receiving application.
Length: The length of the UDP header and data.
Checksum: Used for error-checking the header and data.
IP Addresses: These are included in the IP header, not the UDP header.
Sequence Numbers: These are part of the TCP header, not UDP.
MAC Addresses: These are part of the Ethernet frame header and are not included in the UDP header.
Reference: RFC 768 – User Datagram Protocol: RFC 768
Cisco Guide on UDP: Cisco UDP Guide

The primary purpose of assigning an IP address to the management VLAN interface on a Layer 2 switch is to facilitate remote management of the switch. By configuring an IP address on the management VLAN, network administrators can access the switch’s Command Line Interface (CLI) remotely using protocols such as Telnet or Secure Shell (SSH). This allows for convenient configuration changes, monitoring, and troubleshooting without needing physical access to the switch1.
Reference: =
* Understanding the Management VLAN
* Cisco – VLAN Configuration Guide
* Remote Management of Switches
Assigning an IP address to the management VLAN interface (often the VLAN 1 interface by default) on a Layer 2 switch allows network administrators to remotely manage the switch using protocols such as Telnet or SSH. This IP address does not affect the switch’s ability to route traffic between VLANs but provides a means to access and configure the switch through its Command Line Interface (CLI).
* A: The switch does not act as a default gateway; this is typically a function of a Layer 3 device like a router.
* B: The switch does not resolve URLs; this is typically a function of DNS servers.
* C: The switch can relay DHCP requests but does not typically provide DHCP services itself; this is usually done by a dedicated DHCP server or router.
Thus, the correct answer is D. To enable access to the CLI on the switch through Telnet or SSH.
Reference: =
* Cisco VLAN Management Overview
* Cisco Catalyst Switch Management

Explanation:
The correct matching of the protocols to their examples is as follows:
* DHCP: Assign the reserved IP address 10.10.10.200 to a web server at your company.
* DNS: Perform a query to translate companypro.net to an IP address.
* ICMP: Perform a ping to ensure that a server is responding to network connections.
Here’s how each protocol corresponds to its example:
* DHCP (Dynamic Host Configuration Protocol) is used to assign IP addresses to devices on a network. In this case, DHCP would be used to assign the reserved IP address 10.10.10.200 to a web server.
* DNS (Domain Name System) is used to translate domain names into IP addresses. Therefore, to translate companypro.net to an IP address, DNS would be utilized.
* ICMP (Internet Control Message Protocol) is used for sending error messages and operational information indicating success or failure when communicating with another IP address. An example of this is using the ping command to check if a server is responding to network connections.
These protocols are essential for the smooth operation of networks and the internet.
* Perform a query to translate companypro.net to an IP address.
* DNS (Domain Name System): DNS is used to resolve domain names to IP addresses.
* Assign the reserved IP address 10.10.10.200 to a web server at your company.
* DHCP (Dynamic Host Configuration Protocol): DHCP is used to assign IP addresses to devices on a network.
* Perform a ping to ensure that a server is responding to network connections.
* ICMP (Internet Control Message Protocol): ICMP is used by network devices to send error messages and operational information, and it is the protocol used by the ping command.
* DNS (Domain Name System): DNS translates human-friendly domain names like “companypro.net” into IP addresses that computers use to identify each other on the network.
* DHCP (Dynamic Host Configuration Protocol): DHCP automatically assigns IP addresses to devices on a network, ensuring that no two devices have the same IP address.
* ICMP (Internet Control Message Protocol): ICMP is used for diagnostic or control purposes, and the ping command uses ICMP to test the reachability of a host on an IP network.
References:
* DNS Basics: What is DNS?
* DHCP Overview: What is DHCP?
* ICMP and Ping: Understanding ICMP

The tracert command output shows the path taken to reach the destination IP address, 192.168.1.10. The command output indicates:
*Hops 1 and 2 are successfully reached.
*Hop 3 times out, meaning the router at hop 3 did not respond to the tracert request. However, this does not necessarily indicate a problem with forwarding packets, as some routers may be configured to block or not respond to ICMP requests.
*Hops 4 and 5 are successfully reached, with hop 5 being the destination IP 192.168.1.10, indicating that the server is reachable.
Thus, the correct answer is C. The server with the address 192.168.1.10 is reachable over the network.
References :=
*Cisco Traceroute Command
*Understanding Traceroute
The tracert command output indicates that the server with the address 192.168.1.10 is reachable over the network. The asterisk (*) at hop 3 suggests that the probe sent to that hop did not return a response, which could be due to a variety of reasons such as a firewall blocking ICMP packets or the router at that hop being configured not to respond to ICMP requests. However, since the subsequent hops (4 and 5) are showing response times, it means that the packets are indeed getting through and the server is reachable12.
References :=
*How to Use Traceroute Command to Read Its Results
*How to Use the Tracert Command in Windows

Explanation:
Based on the image description provided, here are the cable types matched with the appropriate connection descriptions:
Connects Switch S1 to Router R1 Gi0/0/1 interface Cable Type: = Straight-through UTP Cable
Connects Router R2 Gi0/0/0 to Router R3 Gi0/0/0 via underground conduit Cable Type: = Fiber Optic Cable
Connects Router R1 Gi0/0/0 to Router R2 Gi0/0/1 Cable Type: = Crossover UTP Cable
Connects Switch S3 to Server0 network interface card Cable Type: = Straight-through UTP Cable
The choices are based on standard networking practices where:
Straight-through UTP cables are typically used to connect a switch to a router or a network interface card.
Fiber optic cables are ideal for long-distance, high-speed data transmission, such as connections through an underground conduit.
Crossover UTP cables are used to connect similar devices, such as router-to-router connections.
These matches are consistent with the color-coded cables in the image: green for switch connections, yellow for router-to-router connections within the same rack, and blue for inter-rack connections. The use of these cables follows the Ethernet cabling standards.
Connects Switch S1 to Router R1 Gi0/0/1 interface:
Cable Type: Straight-through UTP Cable
A straight-through UTP cable is typically used to connect different types of devices, such as a switch to a router.
Connects Router R2 Gi0/0/0 to Router R3 Gi0/0/0 via underground conduit:
Cable Type: Fiber Optic Cable
Fiber optic cables are used for long-distance connections, such as those through an underground conduit between buildings.
Connects Router R1 Gi0/0/0 to Router R2 Gi0/0/1:
Cable Type: Crossover UTP Cable
A crossover UTP cable is typically used to connect similar devices directly, such as router to router connections.
Connects Switch S3 to Server0 network interface card:
Cable Type: Straight-through UTP Cable
A straight-through UTP cable is typically used to connect a switch to an end device, such as a server.
Straight-through UTP Cable: Used to connect different devices (e.g., switch to router, switch to server).
Crossover UTP Cable: Used to connect similar devices directly (e.g., router to router, switch to switch).
Fiber Optic Cable: Used for long-distance and high-speed connections, often between buildings or data centers.
Reference: Network Cable Types and Uses: Cisco Network Cables
Understanding Ethernet Cabling: Ethernet Cable Guide

Explanation:
* Three virtual machines are connected by a virtual network in the cloud.
* Model: IaaS (Infrastructure as a Service)
* Explanation: IaaS provides virtualized computing resources over the internet, including virtual machines, storage, and networks.
* Users access a web-based graphics design application in the cloud for a monthly fee.
* Model: SaaS (Software as a Service)
* Explanation: SaaS delivers software applications over the internet, typically on a subscription basis, accessible via a web browser.
* A company develops applications using cloud-based resources and tools.
* Model: PaaS (Platform as a Service)
* Explanation: PaaS provides a platform allowing customers to develop, run, and manage applications without dealing with the infrastructure.
* IaaS (Infrastructure as a Service): Provides virtualized hardware resources that customers can use to build their own computing environments.
* PaaS (Platform as a Service): Offers a platform with tools and services to develop, test, and deploy applications.
* SaaS (Software as a Service): Delivers fully functional applications over the internet that users can access and use without managing the underlying infrastructure.
References:
* Cloud Service Models: Understanding IaaS, PaaS, SaaS
* NIST Definition of Cloud Computing: NIST Cloud Computing

The private IP address ranges that are set aside specifically for use within private networks and not routable on the internet are as follows:
Class A: 10.0.0.0 to 10.255.255.255
Class B: 172.16.0.0 to 172.31.255.255
Class C: 192.168.0.0 to 192.168.255.255
These ranges are defined by the Internet Assigned Numbers Authority (IANA) and are used for local communications within a private network123.
Given the options:
A). 172.16.0.0 to 172.31.255.255 falls within the Class B private range.
B). 192.16.0.0 to 192.16.255.255 is not a recognized private IP range.
C). 11.0.0.0 to 11.255.255.255 is not a recognized private IP range.
D). 192.168.0.0 to 192.168.255.255 falls within the Class C private range.
Therefore, the correct selections that the company should use for their private networks are A and D.
Reference: =
Reserved IP addresses on Wikipedia
Private IP Addresses in Networking – GeeksforGeeks
Understanding Private IP Ranges, Uses, Benefits, and Warnings
